SE-1420, IP-501 & IP-501-A
"The Classic Shipboard Wireless Receivers"
History, Design and Operation - Restoration - Using the SE-1420 & IP-501-A Today
by: Henry Rogers WA7YBS

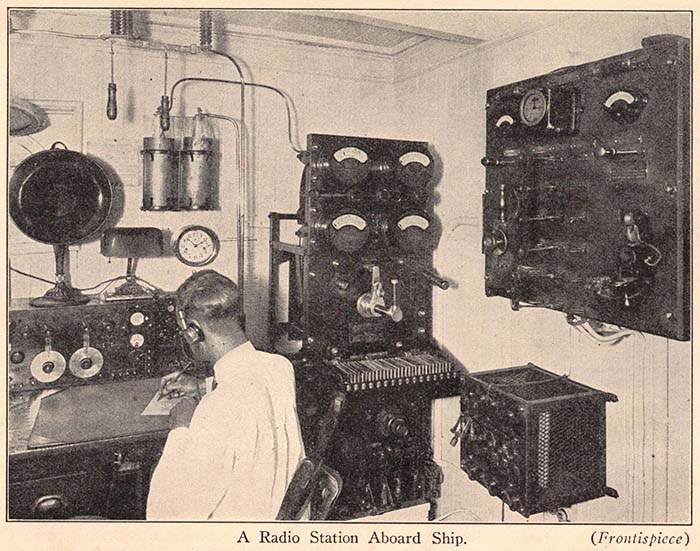

photo: 1920s shipboard radio room
with an SE-1420 receiver and what looks like a Kennedy 521 AF amplifier. The main
transmitter is a quenched spark gap type. Power input switching and
monitoring equipment is mounted on the wall.
"The Classic Shipboard Wireless Receivers"
I have always believed that the SE-1420, IP-501 and IP-501-A receivers were the "R-390s of the 1920s." Their incredible performance, robust construction and high reliability made these receivers the "standard" for all maritime communications receivers that followed. The SE-1420 was the earliest receiver, designed for the Navy at the end of WWI, but the later IP-501 and IP-501-A, along with updated versions of the SE-1420, were built through most of the twenties and were still found onboard ships well into the late thirties and early forties. In 1923, the IP-501-A sold for a staggering $550 - the equivalent of two new Model T cars at the time. It's high price was certainly due to the military-commercial nature of its intended use and its high level of construction quality which resulted in its impressive performance. So, let's take a look at what the 1920s version of the R-390 was like...
The Bureau of Steam Engineering was in charge of Navy radio equipment at the time and most receivers were designated with the prefix "SE." Hazeltine's new receiver was going to be designated SE-1420. It borrowed a lot from its predecessor, the SE-143, in general appearance but, unlike its predecessors, the new SE-1420 was going to be a vacuum tube receiver. This went against all Navy tradition since the early days of spark. The Navy manuals of the day condemned the vacuum tube as "unreliable" and "power consuming."
The Navy preferred the silicon detector because of its ease of operation and it reliable nature (what could go wrong with it? It was a rock!) Hazeltine was a vacuum tube expert, he had invented the term "mutual conductance" and thoroughly understood how vacuum tubes operated. He designed the SE-1420 to use a regenerative VT detector and to have the ability to greatly reduce interfering signals. >>>
>>> Hazeltine first utilized a three-circuit tuner, that is, adjustable tuning of the antenna circuit, the detector grid circuit and the detector plate circuit, to provide excellent sensitivity. He then used a completely shielded cabinet and isolated the Antenna Tuner circuit from the Secondary Tuner circuit with another shielded panel. This complete shielding would eliminate any stray pick up, hand-capacity effects or any coupling between the two circuits. Using a sharply tuned Antenna Tuner helped to improve selectivity and reduce adjacent frequency interference. By using a small Coupling Coil mounted inside the Antenna Coil and only allowing the energy from the Coupling Coil into the Secondary Tuner, further reduction of unwanted signals was realized. The two main inductors used bank-wound Litzendraht wire coils to reduce capacitive losses. "Dead turns" on all switched inductances were grounded by the action of the switches to further reduce losses. All of these efforts increased the selective nature of the SE-1420's tuning ahead of the detector input. The regeneration, called "TICKLER," was provided by a variometer that was built into the secondary inductor form. The TICKLER controlled the sensitivity and somewhat the selectivity of the receiver. The TICKLER also would allow the detector to be operated as an Autodyne or oscillating regenerative detector. Since the detector was oscillating at the tuned frequency this provided a heterodyne action with the incoming signal that the allowed demodulation of an arc transmitter's continuous wave (CW) signal. When operated as an autodyne, the receiver requires complete shielding to eliminate hand-capacity effects and stout construction for stability.
The detailed design effort was necessary because all Navy (and most other maritime vessels) used either spark or arc transmitters which usually produced very broad spectrum signals. Early receivers were so insensitive and tuning so crude that the broad transmitted signal was usually an advantage at attracting attention. The inability to have simultaneous operation of nearby stations led to sharing "airtime" - a gentleman's agreement that allowed most wireless operators to co-exist. Wartime was a different situation however and better, more powerful transmitters required better, more selective receivers. As the spark gap transmitter was improved and its bandwidth narrowed, the receivers became more sensitive but not necessarily more selective. They still responded to the fairly broad spectrum signals that prevailed. At the time the SE-1420 made its appearance, its ability to function in the presence of nearby spark and arc transmitters made it an instant necessity for all sea going vessels.
Several contracts were issued for SE-1420 receivers in late 1919. The initial contracts were for 400 receivers from AMRAD (American Radio & Research Corporation,) 400 receivers from Wireless Specialty Apparatus Company and 300 receivers from Sperry Gyroscope Company. These contacts were renewed and extended into 1920. Westinghouse designed their version of the SE-1420 receiver late in 1920, probably for use by the International Radio Telegraph Co., one of their subsidiaries. In 1921, Westinghouse submitted this version to the Navy for assessment but they were not offered a contract. Westinghouse designated their version as the Type DB Medium Wave Receiver and then offered it to the commercial user market.
The various SE-1420 receivers will have some differences depending on the contractor and the time period of manufacture. AMRAD versions did not use a Telephone Condenser switch and mounted an ID tag on the front panel where the TC switch is on the WSA version. Also, AMRAD binding posts use hex nuts rather than knurled thumb nuts. "National Electrical Supply Company," a supplier of electrical and automotive parts located in Washington D.C., was added to the contractors rather early in the SE-1420 build history. "National Electrical Supply Company" is sometimes confused with Reginald Fessenden's company, "National Electrical Signaling Company" since both are usually referred to by the acronym, "NESCO." (Fessenden's NESCO was reformed into International Signaling Company in 1917 and then, after WWI, was purchased by Westinghouse to form their International Radio Telegraph Co.) Most National Electrical Supply Co. versions are very similar to the earlier AMRAD versions. Since AMRAD was bankrupt by 1924, later similar appearing versions are usually National Electrical Supply builds. Later Signal Corps versions are sometimes designated as BC-131 receiver. The later versions of the SE-1420 and IP-501 receivers will have less elaborate tube sockets that utilize a standoff mounted bakelite platform to mount a conventional bayonet-twist type tube socket. The filament ammeter on the early SE-1420 is a "live zero" meter with a .5-0-1.5A scale. The meter is generally marked as "CAY 260." Later SE-1420 receivers will have a DC Voltmeter rather than the CAY-260 current meter. The Westinghouse Type RB did away with the meter entirely.
||Tube types used in the SE-1420 depended on the time period and
user. In early receivers, generally, if the Navy used the SE-1420, a
Moorhead Electron Relay (ER) was used as a detector, while the Signal Corps preferred the
Western Electric VT-1. There were many variations of the Moorhead ER
tubes with different manufacturers building them from 1919 up to the
early twenties. Both the VT-1 and the ER tubes specify filament current rather
than voltage (.5A@ ~3vdc for the VT-1 and .4A@~4vdc for the ER.) There were other
tubes also available, like the military triodes that had the internal
structure mounted so that when the tube was operated in the horizontal
position (as in the SE-1420) the actual tube structure is in the
vertical position. This prevented filament sagging that could happen
with standard tubes operated in the horizontal position. Later SE-1420 receivers used the 201A and these tubes specify
filament voltage (5vdc@.25A) The panel meters were changed from ammeters to dc volt
meters as tube use evolved.
Apparently, many early SE-1420 receivers were rebuilt by the military as the receiver aged. This included upgrading the receiver to the SE-1420C or BC-131 configuration. This upgrading included adding a grid-leak resistor and capacitor assembly, usually mounted on the Secondary Inductor mount near the Tickler coil. Early versions of the SE-1420 relied on self-biasing of the detector tube and, although this does work, it requires fine adjustments of the filament and plate voltages for best results since there isn't a fixed negative bias source in the SE-1420. As vacuum tubes improved, the grid-leak arrangement worked better since it allowed for rectification (detection) and would "leak" off the excessive negative charges quickly though a high-value resistor.
variations are seen of the replacement tube socket. The original socket
is overly complex and was probably a constant source of problems. The
simpler replacements are seen on rebuilt SE-1420 receivers and usually
are utilizing the original stand-offs and lugs but have additional
stand-offs to support a bakelite or fiber platform that has the tube
socket integral with the platform. Some of the platforms seen are round,
others are triangular. More than likely it depends on when the rebuild
was performed, with the triangular platform being the later version.
Rebuilt receivers will usually have a newer ID tag mounted in place of
the original tag or sometimes just an additional tag with the rebuild
information. The boxes were sometimes painted olive-drab when the Signal
Corps converted the receiver to the BC-131 configuration.
New SE-1420 receivers were built through most of the 1920s by several different contractors over the years. Shown in the photos to the right is a later SE-1420 made for the Coast Guard, the CGR-5A, from June 1927. This version doesn't have the buzzer or the circuit selector switch and is housed in a metal cabinet. Also, the dial is calibrated in frequency rather than meters. The contractor on this particular CGR-5A was National Electrical Supply Company. This version also references itself to the SE-1420C. The receiver shown belongs to C. Dockery, who has also provided the photos.
photo above: 1927 - CRG-5A built by National Electrical Supply Company for the U.S. Coast Guard
History - IP-501 & Wireless
Specialty Apparatus Company
photo right: The IP-501 with Triode Type B Amplifier and Long Wave Adaptor. From: The Radio Manual, Sterling - 1928

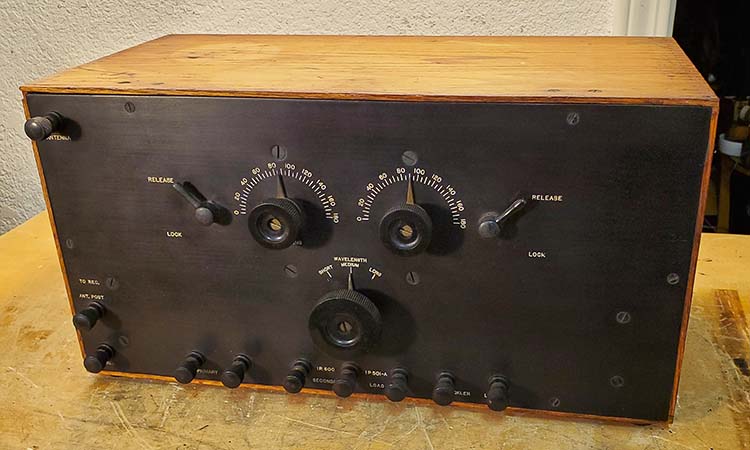

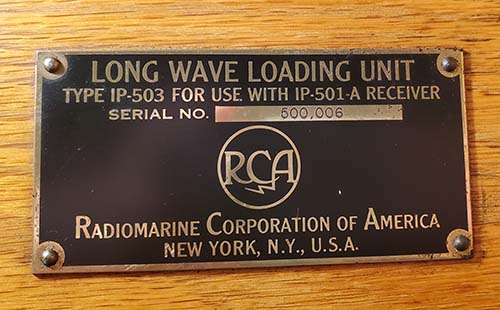

History - IP-501-A & Radiomarine Corporation of America
>>> RCA handled the sales of IP-501 receivers and accessories from around 1921 until sometime in 1923. In 1923, Wireless Specialty Apparatus disappeared from the scene, apparently purchased or absorbed by RCA. It is likely that RCA also acquired the WSA manufacturing plant in the deal since all later IP-501s and IP-501-As still use WSA parts but have tags that indicate RCA-RMCA as the builder.
Radiomarine Corporation of America was likely created from Wireless Specialty Apparatus around 1924 or '25. RCA's founding history allowed a separate portion of RCA's assets to be directed toward the lucrative maritime market. The Navy had stipulated in November 1919, when RCA was created, that they wanted to deal with just one company for all wireless equipment and operations (this was eventually backed-up with various laws regarding use of foreign equipment or operation of US stations.) In the early twenties, RCA was operating many of the coastal wireless stations and providing "Radiogram" communications. With the formation of RMCA, all marine operations and sales were then transferred to Radiomarine Corporation of America as a division of RCA.
By the late twenties, the IP-501 family of receivers were beginning to show their age. The later versions eliminated some of the unnecessary or expensive circuits and parts but the basic style was still easy to recognize. Many receivers were still in use well into the late thirties. Their operation was easy, they were reliable and their excellent performance in the hands of experienced radio ops had resulted in the receiver becoming the "standard" shipboard receiver for at least a decade and a half. Advertising for RMCA was still using photographs of shipboard installations showing the IP-501-A as late as the post-WWII time period. The selling price of the IP-501-A was $550 in 1922 (listed in "Radio Enters the Home," a catalog of products available through RCA though built by WSA at this time.)
By 1930, RCA had acquired most of the patents and power that had formerly been shared by the GE-Westinghouse-AT&T Group as part of a settlement of an Anti-trust suit brought by the government. That resulted in the consolidation of RCA into the omnipotent corporation that controlled everything in radio in the thirties and forties. By the thirties, RMCA was running many of the coastal marine stations that provided Radiogram service to ships at sea. RMCA built marine radio gear that was installed on commercial ships. During WWII, RMCA supplied the Liberty ships with radio gear. Around the mid-1960s, RMCA was eliminated as a division and RCA handled all of the maritime business directly - at least, what was left of it.
United Fruit Company went on to political involvement in some Central and South American countries in an effort to protect and/or enhance their extensive banana and pineapple properties. UFC was usually accused of neo-colonialism (or worse) in their political involvements and their power waned after WWII. Eventually, United Fruit Company merged to become United Brands (in 1970) and then was reorganized in 1984 as Chiquita Brands International.
|The photo left is a close up of the ID tag of an IP-501-A showing Radiomarine Corporation of America as the builder of the receiver. This
tag is from the receiver shown in the photo right - a beautiful later version
of the IP-501-A. This receiver is probably from the 1924 to 1926 time
period. Note that the telephone condenser switch was eliminated and bakelite
capped binding posts are used on these later receivers.
both of these great photos are courtesy of Grant Kornberg
|Receiver Circuit and Construction Details

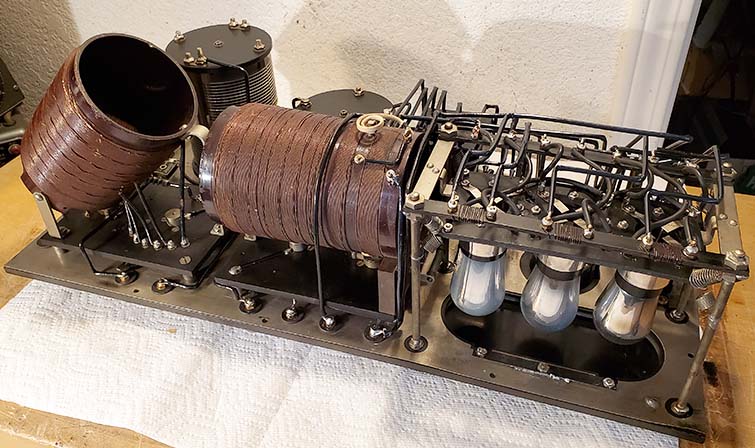

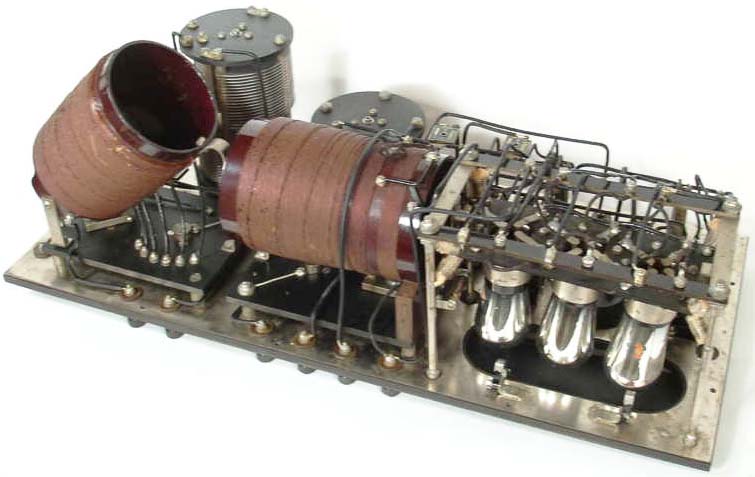

One look into the SE-1420, the IP-501 or the IP-501-A reveals an approach to construction where reliability was a major consideration, along with superior performance and ease of operation. The receiver uses a three-circuit tuner with regenerative/autodyne detector. The IP-501-A includes a built-in two-stage audio amplifier. The Antenna Tuner and Secondary Tuner circuits and the Detector circuits are similar in all receivers. The Antenna Tuner is labeled "ANTENNA INDUCTANCE" and "ANTENNA CONDENSER." The condenser is gear driven and the dial is calibrated 0-180º on its graduated scale. The Inductance taps are switched, "dead turns" are shorted to ground and an articulated pointer shows which band or scale is used. The Antenna Condenser dial has no nomenclature other than the 0-180º scale and ample room was provided on the upper non-scaled area for the operator to write in any markings he needed. The "COUPLING" control rotates a small coil located at one end of the Antenna Coil. The wires from the Coupling Coil are placed next to the front panel shield and then routed through a small opening at the base of the vertical shield that divides the cabinet into two shielded compartments. Only the energy within the variable Coupling Coil is transferred to the Secondary Tuner circuit. The shielding provides complete isolation and eliminates stray pick-up or any hand-capacity effects when operated as an autodyne detector. What comes down the antenna and is tuned in the Antenna Tuner circuit is then variably coupled into the Secondary Tuner circuit. This provided the excellent selectivity necessary for operation of the receiver in the presence of nearby spark and arc transmitters.
The Secondary Tuner circuit is labeled "SECONDARY CONDENSER" and "SECONDARY INDUCTANCE" - this is the main station selector tuning. The Secondary Inductance control selects the tuning range via the tapped inductance, "dead turns" are shorted to ground and the Secondary Condenser tunes the receiver frequency within that range. An articulated pointer shows which tuning range has been selected. On the IP-501 and IP-501-A, the Secondary Condenser dial is scaled in both Degrees and Meters with the various bands covering 300 meters up to 7500 meters, or approximately 1000kc down to 40kc and the condenser is gear driven, (most receivers will tune 1200kc down to 37kc.)
The detector is a regenerative type using a variometer and tickler load winding on the secondary coil. Variometer controlled regeneration relies on tuning the detector plate circuit (with the variometer) to resonance with the grid input frequency. The feedback path is by way of the detector tube's interelectrode capacitance. For reception of damped wave spark transmitters using rotary gaps the "TICKLER" is adjusted to a setting just before the oscillation point. If an arc transmitter was to be received then the "TICKLER" can be set into oscillation to allow a heterodyne action (autodyne detector) to hear the arc signal since it is continuous wave or CW. For the reception of a voice transmission via AM, the "TICKLER" would be set to just before oscillation occurs. The greatest sensitivity and selectivity occurs just at either side of the oscillation point in a regenerative detector and that is usually where the operator would adjust his "TICKLER." Since the load on the "TICKLER" (plate variometer) is fairly constant (because of the Antenna Tuning) there is very little change in where the "TICKLER" is set until the receiver is operated below 100kc. Since the regeneration is tuned, lower frequency reception requires a little more total variometer inductance so the "TICKLER" control will have to be increased (higher on the scale) as frequencies below 100kc are tuned. The "TICKLER" tunes total inductance in 180º of rotation but, depending on the receiver, all "TICKLER" action is usually centered around 45º and increases to 90º as the lowest frequencies are tuned. The push button switch labeled "OSCL'N TEST" is for testing if the detector is actually oscillating or not. If the button is pushed and the detector is oscillating a "click" will be heard in the earphones. No click means the detector is not oscillating and the "TICKLER" control needs to be adjusted. Detector tube is normally a UV/UX-201-A.
The audio amplifier circuit used in the IP-501-A is a standard two-stage type using interstage transformer coupling. The
AF interstage transformers are typical RCA units and probably were products of that company. The
ratio is around 3.5:1. Tubes normally used were UV/UX 201-A. There are ni-chrome windings on the bakelite wire
carrier of the tube socket assembly. These provide about 1ohm resistance
in the filament line to each tube as filament protection in case one of
the tubes was removed with the A+ on. C bias voltage is used on both
AF amplifier grids. The AF amplifier plates are usually run at 90vdc B+ and
the C bias is usually -4.5vdc. The Detector plate is run at 45vdc B+.
Filament control telephone jacks are used for output and the three
provided allow for Detector only, Det.+1AF or Det.+2AF operation.
Insertion of the 'phone plug into one of the jacks will determine
which tube filaments are lighted. A panel meter shows the applied
filament voltage which is adjusted with the control "INCREASE." On
SE-1420 receivers, the panel meter measures current drawn by the
detector filament. It was changed to a voltmeter early in the IP-501
production. The early versions of the SE-1420 are wired with the input
ground "floating" and tied to the shield and B- through a fixed
capacitor. This was changed in later versions to have the shielding
connected directly to the input ground and then the B- connected to the
shield through a fixed capacitor.
The "TELEPHONE CONDENSER" switch allows selecting various values of input capacitors to the RF pi-filter that is connected between the output of the TICKLER variometer and the audio output line. The RF pi-filter also uses a series iron core choke and a fixed output capacitor. The selectable input capacitors allow varying the audio response, specifically rolling off the high frequency audio. This is particularly effective for relief from static and other atmospheric noise. This function is only on the WSA versions of the SE-1420. It is also on the early versions of the IP-501 and IP501-A. The TC switch was never used in the AMRAD SE-1420 and was eliminated from the later versions of the WSA receivers. The TC switch was really not a necessity. It was probably installed on the WSA receivers for shipboard operation where static and antenna noise can hamper reception. RCA/RMCA eventually eliminated the TC switch, probably because of expense, potential problems and the fact that an optimum fixed-value capacitor resulted in effective static relief along with increased reliability by eliminating the switch.
|The SE-1420, IP-501 and the IP-501-A all provide operations with
crystal detectors utilizing the low-capacitance lever switch labeled "CRYSTAL OR R.F.AMPL" - "SEND" - "TUBE" ("AUDION" on SE-1420 sets.) Usually the standard
crystal detector used was the "Three Detector Stand" that WSA offered.
Typical shipboard operation had to provide for the possibility that all
of the vacuum tubes, those in the set and the spares, could be destroyed
during wartime with a possible torpedo hit. There was also the
possibility that given enough time and bad luck all tubes and spares
might just fail while still at sea. Or, maybe the batteries might need
charging or replacement and there were no spares. In other words, many
different things could affect whether or not the vacuum tubes could be
used. The crystal detector was the back-up and it always would work.
The "BUZZER" provides a "signal generator" of sorts. When looking for a sensitive spot on the crystal detector, it would help if a really loud signal was present. Pressing the buzzer button will actuate a small mechanical buzzer that arcs and creates tremendous wideband RF. This is coupled into the antenna circuit with a brass sleeve capacitor on the wiring to the Antenna Inductance switch on SE-1420 sets and by a wire coil wrapped around the same wiring in the later receivers. The buzzer battery is usually a 1.5vdc dry cell battery. It's not critical, but 2vdc was considered the maximum for the buzzer. DO NOT PRESS the buzzer button (with Buzzer battery connected) while in the vacuum tube mode of operation - if you do and you're using 'phones in the AF2 jack, the resulting "signal" will be so intense that you probably won't be able to hear anything for a few minutes afterward (yes, I did it.) The Buzzer circuit was only for finding a sensitive spot on a crystal detector. Additionally, a Long Wave Adaptor was sometimes used if operation below 40kc was needed. This unit sat on top of the receiver and its connections match the binding posts located at the top of the panel on the IP-501 and the IP-501-A (the Long Wave Adaptor units were not used with the SE-1420.) The Long Wave Adaptor had series inductors inside that when connected allowed the receiver to tune down into the VLF part of the spectrum.
The oak box that the receiver is mounted in is entirely lined with copper sheeting to act as the shielding. Complete contact is assured by way of the metal screw mounts that contact the receiver's panel shielding. Early receiver boxes sometimes had a front cover that was held on with bale clamps. The ID tag is located on the side of the box and these are almost always missing. This was probably due to the "military surplus" regulations of the time that required all mil-tags to be removed before sale. Something about if the tag wasn't there then the unit wasn't stolen. This regulation may have also applied to commercial surplus. Weight of the box with all of the copper inside is substantial and the entire receiver is quite heavy for a battery operated receiver - about 40lbs for an IP-501-A. The box for the SE-1420 is similar in construction but the shielding is not painted and is left bare copper. The finish on the SE-1420 box is somewhat dark, usually about the color of "iced tea." The later IP-501 and IP-501-A receiver boxes are finished in golden oak. Most BC-131 boxes are olive-drab paint. The front panels are .312" thick and is made of "Hard Rubber" sometimes called "Condensite" or "Bakelite-Delecto." This material is not brittle like bakelite or formica. The manuals say that the panel can be wiped with oil to protect it. Probably, with all of the salt-air present onboard a ship at sea, wiping oil on the entire panel, dials, knobs and cabinet would have gone a long way to protect the receiver's overall finish.
All screw and nut connections in the receiver are tightened and then soldered. This method is also used on the mechanical assembly. Soldering is easily accomplished since all of the hardware is nickel plated brass. This securing of all joints with solder was necessary because of the constant vibration of the ship while at sea in addition to adding protection from salt-air corrosion problems. The solder joint itself is not particularly strong and can easily be disassembled, however, much like modern "lok-tite," it was meant to keep the screws and nuts secure after tightening.
|Restoration shouldn't be desired or even considered if
your receiver is complete and original. However, this is by far the
minority of surviving SE-1420, IP-501 or IP-501-A receivers. Most of
these great receivers were destroyed in the past 80+ years by scrap
dealers, by the scrap drives of WWII,
by parts dealers, by surplus dealers selling to "hamsters" and just by years of
storage and neglect. This section is for the restorer that wants to have
his incomplete receiver as accurately restored as possible and to have it
operational and functioning correctly.
Most SE-1420, IP-501 and IP-501-A receivers that are found today are far from complete. It isn't unusual to find the receiver missing all of its buss wiring or missing major components and almost always some of the minor parts will be gone. I one time found the Antenna Tuning Condenser of an IP-501 that had been "sawn" out of the front panel - not dismounted from the panel - just sawn out, panel and all. Such destruction was common. Anything is possible to find since these receivers were considered surplus unusable junk in the forties and fifties. How likely your receiver is able to be completely restored depends on your interest, your abilities at replicating parts and how much of the receiver you have to start with.
|Generally, the major parts necessary for considering a complete and
functional restoration of the receiver are:
1. Both Antenna and Secondary Inductors - including Coupling Coil and Tickler Coil. The Inductors are bank-wound Litzendraht wire and have multiple layers and taps that are wound on machine grooved forms - difficult to replicate. The Inductor switching is also a complex assembly.
2. Both Antenna and Secondary Condensers - complete with gear drives. These condensers are also very complex assemblies.
3. Front panel and all shielding - includes both main dials
4. Cabinet and cabinet shielding - though the receiver will operate without the cabinet, it's complete shielding is an important part of the design.
Most of the other parts can be found or replicated. Some parts are not too difficult to find even today. You will probably have to adapt some of the parts from 1920s TRF battery radios. Many times these are the exact same parts anyway. Knobs can be cast or professionally reproduced. Hardware can also be machined and nickel plated. The amount of work necessary is sometime daunting but patience is required when restoring 80+ year old receivers.

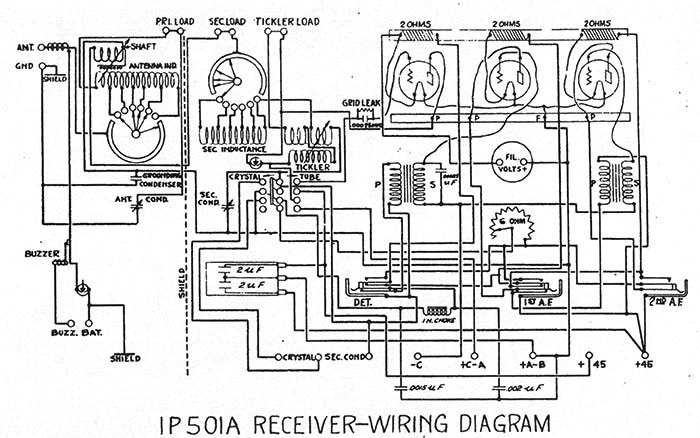

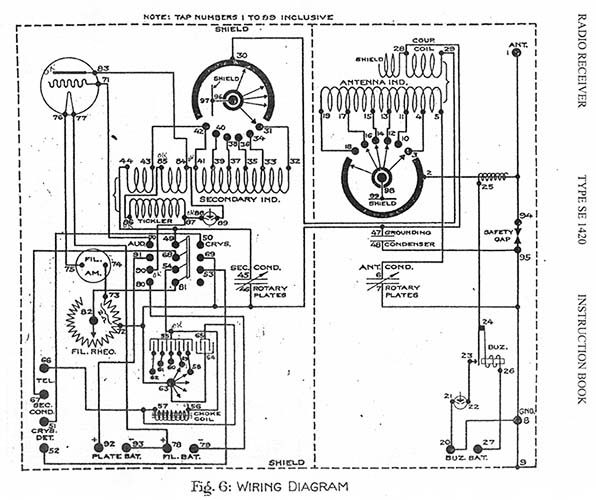

|SE-1420, IP-501 and IP-501-A - Schematics and
Documentation is very important when restoring the SE-1420, IP-501 and IP-501-A receivers. To say that they were poorly documented would be an understatement. None of the schematics available are complete. Most will provide a general idea of how things are connected but details are certainly lacking. The various schematics are shown in several books, e.g., Elmer Bucher's book on Wireless Equipment or early editions of George Sterling's Radio Manual or others, but all are incomplete schematics that are only provided as general information. The IP-501 schematic shown to the right is about as good as they get. Not a lot of details but it is basically complete and does show the connections to the complicated "Circuit Selector" switch. However, mistakes are common, e.g., the "Grounding Condenser" is not a variable, it is a fixed condenser. This schematic is good for the IP-501 produced around 1922. Earlier SE-1420 and the later IP-501-A are very different receivers. What one has to do is use good photos of the interior of original receivers combined with the information provided in the better schematics to ascertain what is correct for your particular receiver. This is assuming that your receiver needs to be restored and is missing some of the original buss wiring or original components. Be aware that the buss wiring techniques and routings changed over the production period, so early receivers look very different inside from the later versions of the same model. Interior photos are the most helpful to determine what is correct.
Operator's manuals are around. Some are available on the Internet and some basic operating instructions are included in various books. Sterling's Radio Manual has instructions for both the SE-1420 and the IP-501, along with the Long Wave Adaptor. However, these instructions are brief, contain very few details and are not very accurate anyway. No details are provided about typical antennas for the receivers. The RMCA manuals are the best and are accurate.
|Helpful Hints in Restoring the
SE-1420, IP-501 and IP-501-A Receivers
Synchronizing the Tickler Variometer - The variometer has to increase total inductance with the proper sign (+ or -) as the pointer is advanced up the TICKLER scale. This results in the receiver requiring higher TICKLER settings as the wavelength is increased (lower frequency.) The correct wiring is the detector plate is connected to the variometer stator input and the variometer rotor output (rotor-front) goes to the Circuit Selector Switch, RF pi-filter and on to the audio output and detector B+. To check that the variometer is synchronized, place the TICKLER pointer straight up on the scale. Look at the variometer rotor just visible on the shortwave side of the Secondary Inductor - you should be able to see the wire splice joint that connects the two rotor inductors together. If you don't see the splice joint then the rotor is 180º out. Remove the TICKLER knob and pointer, then rotate the variometer rotor so that the splice joint side is visible, then re-install the knob and pointer with the pointer straight up on the scale (or nearly straight up.) Check the flexible connections on the variometer rotor to make sure they aren't coiled too tight at each extreme of TICKLER adjustment. NOTE 1: Although you do get a change of total inductance through each 90º of rotation with a variometer, the two 90º quadrants in 180º of rotation are of opposite sign (there is a mutual inductance change also.) When the variometer is operated in the opposite two 90º quadrants, the receiver will not regenerate on lower frequencies or will oscillate uncontrollably. With the proper variometer synchronizing the receiver's oscillation is controllable on all tuning ranges. NOTE 2: Some receivers (early SE-1420s) will have the variometer rotor mounted slightly off so that the angle of rotor rotation is not 0-180º. This was probably to allow the TICKLER adjustment to be more "mid-scale." Later receivers have 0-180º rotation and most of the TICKLER action is located in the 0-90º portion of the scale (as would be expected.) This allowed plenty of regeneration at the lowest frequencies that the receiver would tune to since this was about mid-scale (90) on the TICKLER adjustment.
Dismounting the Antenna and Secondary Condensers - The condensers are mounted using 10-32 screws and nuts with stand-offs between the condenser mounting plate and the back of the panel. The nuts are secured by soldering after assembly. To remove either condenser first remove the associated fine adjustment knob and the dial by removing the large knob and collar, then remove the dial. The dial is only held in place with two locating pins and should easily come off. You will now see that the flange that the dial mounted to will just barely fit though the hole in the panel shield. You have to be careful not to bend the shielding too much when removing the condenser otherwise you will end up shorting the condenser to the shield when reinstalling the unit. Unsolder the buss wire connections to the condenser. Then remove the screws and nuts. The soldered nuts will come off easily. Solder is not particularly strong and usually with a open-end wrench on the nut and a large screw driver on the screw head, the solder joint comes loose with minimum effort. You can also heat the joint up with a larger soldering gun or iron and then break the joint loose. Heated solder is even weaker and the screws will loosen with almost no effort. After the screws and nuts are off, carefully rotate the condenser assembly while lifting it off of the panel. You will find some interference between the panel shield and the dial flange but by rotating the assembly, the flange will clear the shield hole. Be sure to check the shield hole for bends - it should be straight and even with the back of the panel. Be sure to keep track of the four stand-offs. Remount in the reverse order.
Dismounting the Antenna and Secondary Inductor Assemblies - Fortunately, the inductor assemblies are held to the panel with 10-32 flat-head screws that are not soldered. They screw directly into threaded stand-offs that are mounted to the assemblies. Remove the associated knobs and pointers. Disconnect the buss wires going to the inductor assembly. Remove the four 2-56 screws that hold the dial pointer cover-guide to the panel. The pointer has a .125" diameter pin that is a push-fit into the lifter mechanism behind the panel. Remove the dial pointer. The pointer should be slightly twisted while pulling it away from the panel. The pin fits into a bakelite holder, so it should come off with very little effort. Remove the four 10-32 flat-head panel screws and lift the inductor assembly from the panel. Remount in the reverse order.
Dial Pointers - These are rather complex assemblies for the simple job they do. The "lifter" mechanism is located on the associated inductance assembly. The lifter is gear driven by the inductance switch and the lifter itself is attached to a rack gear. Two guides keep the rack's alignment. The lifter has a "L" shaped bakelite piece that the pointer pin is inserted into. The pointer itself is mounted to the front panel by a two-piece cover-guide that is nickel-plated. The cover-guide is mounted to the front panel with four 2-56 round-head machine screws. To remove the pointer just take out the four guide screws, remove the cover-guide pieces and remove the pointer from the lifter by pulling it away from the panel. If you need to work on the lifter mechanism itself, you will have to remove the associated inductance assembly.
Automatic Filament Control Wiring for IP-501-A - I've not seen a schematic for an IP-501-A that shows the wiring of the Automatic Filament Control Jack system. However, the system was used in several other battery operated radio receivers/amplifiers and the wiring should be the same. The telephone jacks have to control both filament voltage and plate voltage based on into which jack the telephone plug is inserted. This requires special telephone jacks that have enough auxiliary contacts to accomplish the switching based on whether or not the plug is inserted. Federal Telephone & Telegraph Company was a major supplier of Automatic Filament Control Jacks. The following information is from the 1923 Federal Tele. & Teleg. Co. catalog and show the jacks required, their identification numbers and how to connect them for automatic operation of the filaments in a Det + 2 Stage AF Amp, like the IP-501-A uses. Click: Automatic Filament Control Jack & Circuits
Buss Wire Details - Buss wiring changed as production methods evolved. The early SE-1420 receivers use a reddish-brown varnished tubing (spaghetti) for insulation. The wiring style for these receivers is very square and the buss wires actually run much longer than necessary. This was for appearance and was typical of the style of wiring at the time. When the IP-501 and IP-501-A were being produced by RMCA, the varnished tubing was changed to black. The style of wiring also changed in that the runs are much shorter and though still somewhat square looking, there are some angles and bends that are for better durability or performance rather than appearance. The late IP-501-A receivers still use black varnished tubing but more and more the square-look is giving way to more direct connections. Finally, in the 1927 CGR-5A (SE-1420C) the spaghetti is entirely eliminated and enameled buss wire used. When replacing missing buss wire, try to find an interior photo of a comparable receiver for reference. Buss wire was usually 13 gauge tinned-copper, which is impossible to find. I have used 14 gauge and 12 gauge, both work fine, although the 12 gauge is more difficult to work. Before using either size, the wire should be "drawn" - that is stretched by anchoring one end and then pulling the other - hard. This straightens the wire and slightly reduces it's diameter. It will make the buss wiring look very straight and professional.
Chronology of SE-1420, IP-501 and IP-501-A Development and Production
1918 - Initial design of the
SE-1420 by Louis Hazeltine
Restoration of the IP-501-A
My second restoration had been incorrect in several places and needed to be redone to be an accurate representative of the IP-501-A, both physically and operationally. I started to search for more parts for the new restoration. The easiest to find were the two RCA audio interstage transformers. The new buss wire used was now 12 gauge (I had used 14ga. before) which also was easy to find. The lacquered tubing or "spaghetti" was a reproduction product supplied by one of the few dealers then around and doing business. It looked very close to original. The Condenser Switch and assembly was rebuilt from correct vintage parts and then installed in a painted black, brass metal box I made. All of the hardware on the front panel was removed and then cleaned and re-nickel plated. The tuning dials were listed originally as "German Silver" but that is really just a fancy name for heavy nickel plating. In order to have all of the hardware parts match, since some were new repros, I had to re-nickel plate all of the hardware. That way it all matches and looks the same vintage. Disassembly is difficult because all screw and nut assemblies are soldered. The technique for removal is to use the soldering iron to heat the solder and nut, then while the joint is still hot use a nut driver to remove the nut. While hot the solder isn't very strong and the nut will back off with very little effort. Clean the screws and nuts before reassembly for better solder flow. This last restoration was done in 1984 and resulted in the IP-501-A looking original and functioning as it should. Or did it? I found that I could not get the receiver to oscillate below about 250kc no matter where the TICKLER was set. Reversing the variometer leads got the receiver to oscillate but the wiring layout didn't match photos of original IP-501-A receivers. I finally revised the way I had done the buss wiring which then allowed the variometer stator input to connect to the plate and the front of the variometer rotor to be the output. This got the IP-501-A looking correct inside and working the way it should - able to regenerate down as low as the receiver would tune.

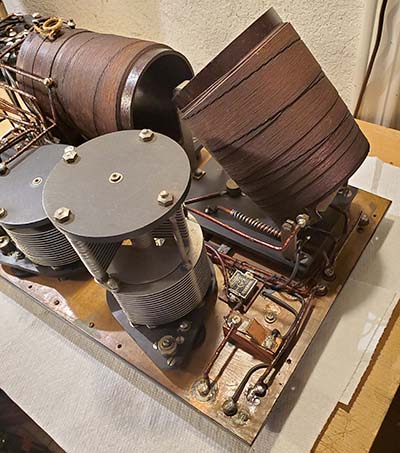

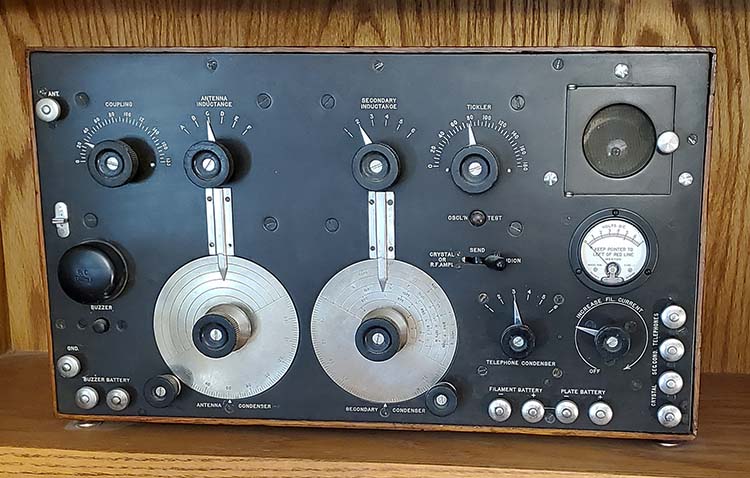

|Restoration of the SE-1420
I bought this SE-1420 from a fellow in Louisiana who had advertised it in Antique Radio Classified magazine in 1990. He had listed the radio as a "Radiomarine Corp Receiver." I was curious as to what it was so I called and asked him to describe the receiver to me. When I heard "...,two large metal dials, lots of metal binding posts and an oak cabinet...," I was sure it was an IP-501 receiver. The price of $150 plus shipping took into consideration that the receiver was nowhere near complete and had been extensively modified by someone, circa 1940s. The seller described all of the modifications and indicated that no major holes were drilled and the coils and condensers were present. When the SE-1420 arrived I found he had described it very accurately. The most important parts to have present on these types of receivers are all of the coils, condensers, bandswitches, dials and cabinet. Most of the other parts can be found or replicated. It seems to be common to find these types of receivers with most or all of the buss wiring missing. Also, many times they are found with conversions to later vintage tubes. Most of the time this is the work of "hamsters" (radio amateurs who are too eager to modify vintage equipment into something it was never intended to be.) The SE-1420 family was available surplus in the late thirties and most of the modifications seem to date from that time period.

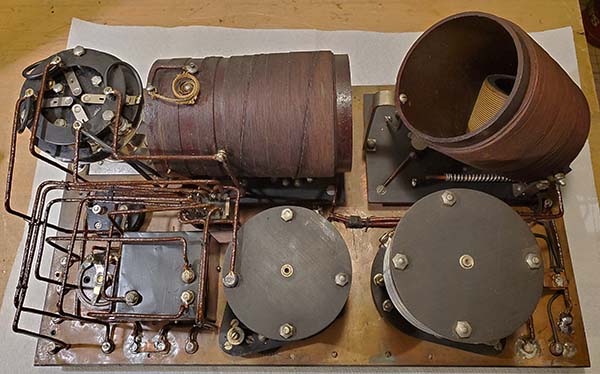

This SE-1420 had all of the essential parts so now I just had to find all of the missing parts. First on the list was a buzzer which was easily found, though it's a Federal T&T type SC BZ-1 (Signal Corps) which is not the original make. I made a replica buzzer switch. Next, I needed a suitable meter. Although a CAY-260 ammeter meter is correct for this vintage SE-1420, I was only able to find a similar vintage Weston DC Voltmeter with 5vdc high-lighted in red. It is not technically correct but probably imparts better information when actually operating the receiver (besides, later SE-1420s had filament voltmeters and probably those receivers updated by the military also had DC voltmeters installed.) Two metal pointers had to be made and two replica knobs cast. The tube access door was missing its knob but a very similar brass type was found at the hardware store, although I had to nickel plate it. A Federal T&T low-capacitance lever switch was found on the Internet (probably after I had owned this receiver for at least 12 years.)

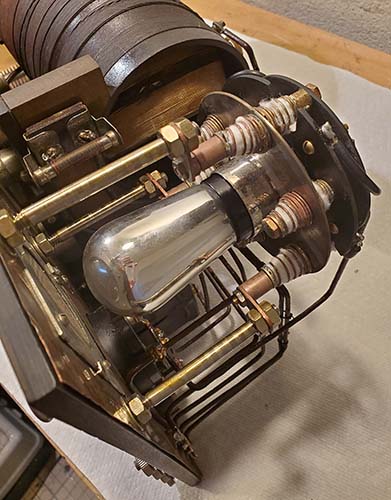

Replicating the SE-1420 Tube Socket
| A template to check size and fit was necessary and was based on the
dimensions of the three mounting holes in the front panel of the
receiver. Also, using proportional measuring, the total height of the
assembly was determined and where each "ring" should be positioned.
Finally, the height of the socket had to also take into account enough
clearance for any type of vacuum tube that might be installed. Typical
SE-1420 tubes were either Moorhead Electron Relays (ER), similar
Atlantic-Pacific types or the Western Electric VT-1. I also wanted to
be sure that I could install a common UX-201A and still be able to close
the tube access door.
I had a local machinist make the standoffs, the shouldered screws and the metal base plate based upon my drawings. I made all of the bakelite pieces and the tube contact pieces. The socket shell and tube pin contacts were from a 1920s battery radio and found in the junk box. Assembly was fitted together to check everything and then, when I was sure of proper fit, the brass screws and nuts were soldered. This duplicated what was normally found in shipboard receivers and was done to prevent assemblies from shaking loose during the constant vibration encountered while at sea. I had to fit brass spacers (like thick washers) inside the springs to keep them centered. From the vintage photos, it appeared that the main support springs had extension spacers. I soldered brass extension spacers to the springs where necessary. The bakelite wire carrier ring has rubber insulated wire connections coming from the tube pin contact strips. These were routed as seen in the vintage photographs.
photo left: Some of the parts necessary to replicate the SE-1420 tube socket. A total of 77 parts are required to build the socket.

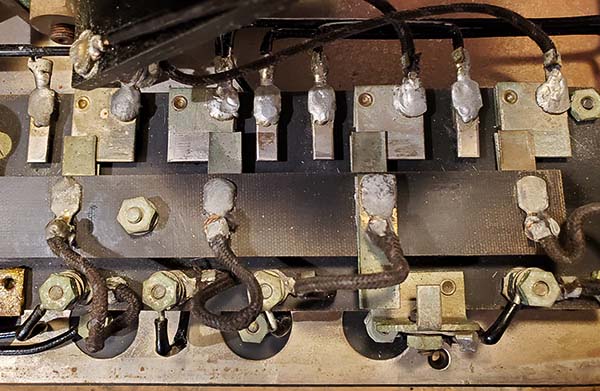

|Building the Telephone Condenser Switch
Unlike the tube socket, I was not able to find a good photo of the Telephone Condenser Switch. This switch assembly is only in the WSA versions of the SE-1420. Most vintage photos of the receiver interior are of the AMRAD versions. I decided to make a Telephone Condenser Switch that looked vintage and would appear basically correct, though not a true "replica." First I had to make the switch itself. The spacing of the six positions is not standard - at least by today's standards for 12 positions in 360º rotation, or 30º spacing. The TC switch is about 18º, or 20 positions per 360º rotation. I did a layout having 18º spacing on a bakelite mounting plate and using vintage contact points built up the six-position switch. The front mounting plate acts as a bearing for the 0.5" diameter shaft and also allows the switch assembly to be mounted to the receiver panel utilizing the original mounting holes. The capacitors and choke that are also part of the TC switch assembly are mounted to the rear of the switch plate. The three connections are via rubber insulated wires. Since the capacitors and choke are not 1920s vintage parts (new caps and 1950s choke) a metal cover was fabricated to fit over the switch assembly and terminals were placed on the back of the cover for connection to the receiver's buss wiring.
Buss Wiring Technique
The original buss wire in the SE-1420 is 13 gauge tinned copper - next to impossible to find. I used 12 gauge bare copper that I had "stretched" by anchoring one end and pulling on the opposite end. This straightens out the wire and also slightly reduces it diameter. I had to make the varnished "spaghetti." I found some vintage fabric tubing but it was bright yellow in color. Using artist's acrylic paint, I mixed up a small quantity of paint that matched the few remaining original sleeved wires. To install the buss wire you first must decide the route your wire is going to take, then measure and cut the buss wire. Next the "spaghetti" tube has to be cut to length and placed over the wire. Then all of the bends are put in place using either your fingers for the longer bends or needle nose pliers for shorter bends. The next step is to paint the wire sleeve the correct color and let it dry. This only takes about 5 minutes, during which time another buss wire can be cut and gotten ready.
When the paint
is dry the wire can be installed. In examining photos of original
SE-1420 interiors, the buss wiring bends were not perfectly
square. This work was all done by hand when originally installed, so
some variations are normal and to be expected. I based my wiring appearance on
a vintage photo of a WSA SE-1420 interior. After all of the buss wiring
start applying "amber shellac" to the sleeving with a small brush.
Several coats are necessary for the "spaghetti" to take on the
appearance of old sleeving.
"Patina" is a very important part of replicating old parts. I deliberately left the washing residue on the tube socket and also judiciously added scratches and marring to the TC switch box paint. I used a chemical "patina" to darken solder joints and to darken the brass parts of the tube socket. This imparts the impression that one is looking at original parts, original soldering - a true vintage replication.
install one upgrade to the SE-1420 which was a grid-leak RC to improve
performance with 201A tubes. This was a common upgrade done by the
military in the early-twenties as vacuum tube performance evolved and improved.

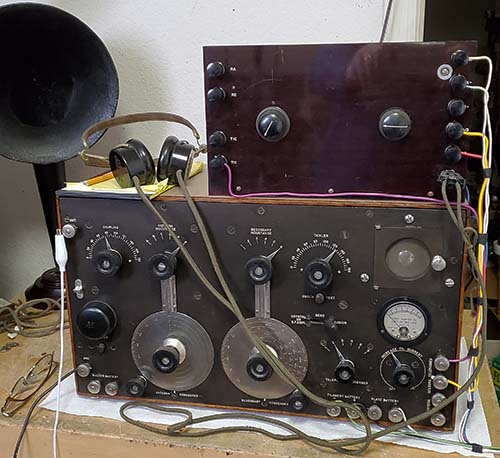

Operating the SE-1420
|The initial testing of the SE-1420 was pretty exciting. After all, here was a receiver that I had purchased nearly twenty years before. It had started out as really nothing more than just the basic necessities for rebuilding. I'm sure this poor SE-1420 had not been operational since it was "hamstered" back in the late thirties or early forties and now here it was - almost ready to operate once again. I decided to use a UX-201A as the testing tube and connected up 6vdc for the filament voltage (adjust to ~5vdc with filament control) and 45vdc for the detector plate voltage. I used the ham station tuned dipole antenna with the feedline shorted and ham station ground system. The initial test was on the AM BC band since signals there are very strong. As soon as the voltage was applied the SE-1420 started to "squeal" through the earphones - a really good sign for regenerative receivers. Backing the TICKLER down brought in the local (Reno) AM BC station on 920kc. A slight tuning of the Antenna Condenser had that station coming in strong in the "Baldie" earphones. I tuned in a few more AM BC stations with very good results, so now it was time to try "NO", the non-directional beacon (on 351kc) at Reno-Tahoe International Airport. Switching to tuning range to "2" and Antenna Tuning to "3", "NO" was found quickly. Since NDBs send MCW signals, the signals are easier to find if the detector is oscillating. In this mode, the Coupling is more critical and most controls interact significantly. Stability is also very difficult to achieve but the SE-1420 seemed to be fairly stable with a UX-201A tube. This isn't the tube type that was normally used with these receivers but this was just a test of operation. The next step was to try the Western Electric VT-1 and then the Moorhead ER, both typical tubes used with the SE-1420 back in 1920 or so. The WE VT-1 works very similar to the 201A tube except the filament voltage is 3.0vdc. The TICKLER settings and the condenser settings are very close to that of the 201A. Not so for the Moorhead ER. This tube runs about 4.0vdc on it's pure tungsten filament. TICKLER has to be advanced significantly and even though it is sensitive enough, it is difficult to tell when the tube is oscillating. Using a UV-201A tube, I was able to "tune in" 28 NDBs in a 30 minute period that evening. Greatest DX was YZH 343kc, Slave Lake, Alberta, Canada. Pretty good results for a single tube receiver. I next added a Pilot Radio Redi-Blox AF amplifier (ca. 1928) to boost the signal levels a bit. This is a transformer coupled, single stage audio amplifier using a UX-201A tube. With more audio, DDP 391kc in Puerto Rico was received (~3500 miles from here,) also YMW 366kc in Maniwaki, Quebec. Low power 25W marker beacons like SYF 386kc in St. Francis, KS and SBX 347kc in Shelby, Montana were also copied. In all, in two listening sessions, 50 NDBs were received including one newly heard 25W NDB, PA 396kc in Snohomish, Washington. Incredible performance from a 1920 regenerative receiver.|

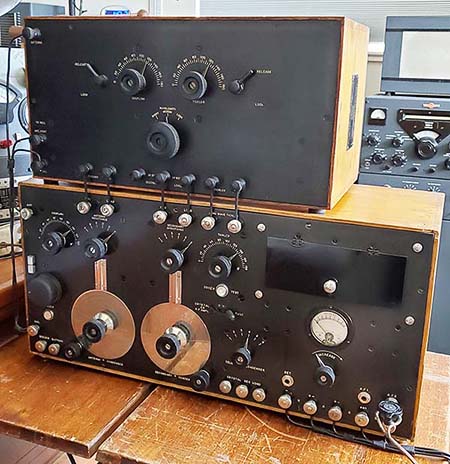

Operating the IP-501-A
with the IP-501-A
As the wavelength
increases, the TICKLER total inductance has to be increased (higher on
scale.) Once the TICKLER is set it doesn't have to be adjusted too much
for each particular tuning range.
The INDUCTANCE switches select the tuning ranges. You will find that the
Antenna Tuner settings won't necessarily match the Secondary Tuner
settings. They are separate circuits so the Antenna Tuner settings will
vary depending on the antenna and ground system used. The Secondary
Tuner Meter Scale can generally be used for a rough starting point for
tuning around. The dial's Meter Scale accuracy is dependant on several other
factors when the receiver detector is operated as an Autodyne detector.
Tuning In NDBs - Setting "Critical Coupling"
To receive NDBs, the receiver should be operated as an Autodyne detector. The stations can be roughly located and tuned using the Meter Scale on the SECONDARY CONDENSER dial and then using the ANTENNA CONDENSER to tune for maximum signal response. Adjust the TICKLER until you hear the detector go into oscillation. Use just the SECONDARY CONDENSER for station tuning and the ANTENNA CONDENSER to peak the signal. When "peaking" the ANTENNA CONDENSER, as you approach resonance you will hear a couple of loud clicks, a change in received frequency and the detector may stop oscillating. This is a result of too tight of coupling (COUPLING set too high.) Set the COUPLING lower on its scale and again tune through resonance with the ANTENNA CONDENSER. As the ANTENNA CONDENSER is tuned back and forth through resonance, listen to the clicks while reducing COUPLING. At "Critical Coupling" the clicks will stop and the detector will remain in oscillation. Tight coupling will over-drive the detector at resonance, causing the jump in and out of oscillation. The "Critical Coupling" setting is good for a fairly wide tuning range, usually at least 20 to 30kc. The TICKLER setting and the COUPLING setting do interact, so usually just the TICKLER is slightly adjusted when the detector drops out of oscillation. After "Critical Coupling" is set, adjustments to the TICKLER are very slight changes. Most tuning can be done using just the two main tuning controls, SECONDARY CONDENSER for tuning stations and peak with the ANTENNA CONDENSER, along with very slight adjustments of the TICKLER. As the ANTENNA CONDENSER is resonated, you will find that the received frequency changes slightly. This is normal interaction of the autodyne detector. Just slight readjustment of the SECONDARY CONDENSER is necessary for proper tuning. It would be next to impossible to find the weak NDB signals without the receiver set as an autodyne detector. This provides a heterodyne action so the carrier of the MCW NDB signal can be easily heard. Tune to "zero beat" and you hear the MCW signal of the NDB - or maybe two or three NDBs, as there are usually several NDBs assigned to each particular frequency.
Tuning for AM BC Operation
The same basic set ups are used for receiving AM signals but the detector must be operated as a straight regenerative detector (not oscillating.) The best sensitivity in a regenerative detector occurs just before the oscillation point. COUPLING is not a critical adjustment in this set-up and, though the COUPLING can be set somewhat tighter (higher on the scale) for AM, it's not really necessary. Anywhere from 45 to 100 is good for AM-BC. Set the TICKLER so that you can hear background noise coming in but not so it is oscillating. Tune around and find an AM station. Peak the signal with the ANTENNA CONDENSER and then adjust the TICKLER to just before the detector breaks into oscillation. The receiver is now operating with maximum sensitivity. Operated as a straight regenerative detector (non-oscillating) there is very little interaction between the controls. You have to keep the two main tuning controls in adjustment as you search around for different stations. The TICKLER doesn't need to be adjusted too much unless you find a really weak AM station you want to listen to.
Other LW Stations
Besides AM BC above 500kc and NDBs below, there are several other interesting signals below 500kc. LW BC stations in Europe and Asia can sometimes be received. Radio Rossii at 279kc on Sakhalin Island is very strong in the West and can be received easily during the winter mornings before 6AM PST. (Russia shut down all LW BC in January 2014.) Also, the are "Lowfers" that operate 1 watt CW transmitters to 50 ft antennas located in the 190kc to 160kc region of the spectrum (hams now have 630M and 2200M bands, CW and data modes only.) Also, WWVB at 60kc, JJY (Japan's equivalent to WWVB) at 40kc and Loran C stations at 100kc (Loran C shut down in 2010.) Most casual listeners don't receive much of what is on the air below 500kc because they listen for AM/voice signals. Very few AM/voice signals will be encountered below 500kc. Almost everything is data transmissions and is being sent in CW, MCW, Pulse-encoded signals, encrypted very narrow-shift RTTY, etc. Voice is only encountered in LW BC and very rarely Voice Weather associated with a few NDBs (usually Alaskan.) To receive most data transmissions you must have the detector oscillating so a heterodyne action allows you to actually hear the signals. Once you listen with the autodyne detector, you'll be surprised just how many signals are below 500kc. (Notes in italics added June 2018 updates.)
Optional Digital Frequency Counter Set-up
Since the IP-501-A and the SE-1420 use a regenerative detector with only an Antenna Tuner between the detector and the antenna, it is possible to couple a digital frequency counter to the antenna lead-in and then have an accurate frequency read-out. When the receiver's regenerative detector is oscillating it is partially acting as an oscillator and as a detector (autodyne detector.) The oscillator output couples into the antenna tuner and then into the antenna. Many times the old AM BC radios with regenerative detectors would be adjusted to oscillate for picking up weak stations and would then radiate the oscillating from the antenna. The radiated oscillations were considered interference and would be received by the neighbors over their radio receivers in the form of "bloops" and "whistles" that are mentioned in many old radio magazine articles. The regenerative detector's oscillations can be a fairly high amplitude and will easily drive a modern digital frequency counter. Since the detector is oscillating at the received frequency, the counter's display is the frequency that the receiver is tuned to. A simple three foot long wire connected to the counter's input with the other end of the wire wrapped around the antenna lead will couple enough signal into the counter for a read-out. Don't connect the counter ground to anything. This digital frequency read-out will only work when the receiver is oscillating. If the frequency read-out is erratic try increasing the TICKLER slightly for an accurate reading, then reset TICKLER for maximum sensitivity. Sometimes at the detector oscillation point the counter will respond to the detector frequency, the signal modulation and the received noise causing an erratic display. When you are searching for NDBs, it's a big help to know exactly where you are tuned.
|IP-501-A Testing Results

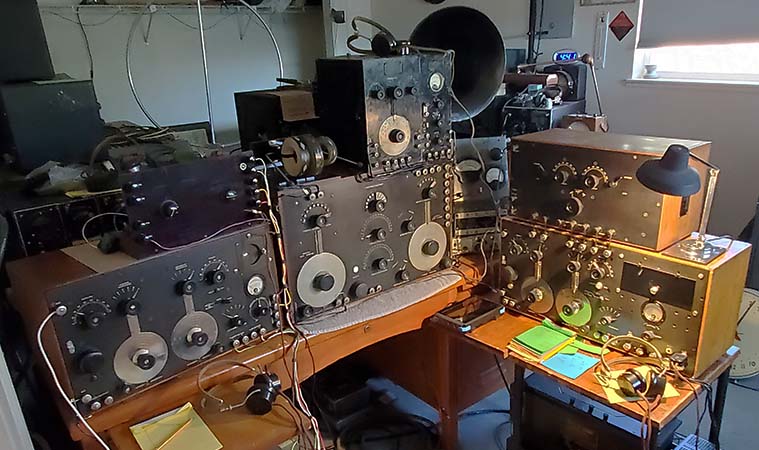

During my set-up for test-listening, I pre-set the receiver to around 770M. When power was applied, to my surprise, there was SX 376kc, a Canadian NDB up in Cranbrook, BC (it was only about 4:45PM local time.) That night, during a 30 minute period, I tuned in 25 NDB beacons from 326kc up to about 414kc. Best DX was DDP 391kc in San Juan, Puerto Rico. This is a 2KW transatlantic beacon but it is about 3500 miles from Virginia City, Nevada. Most difficult was probably ULS 395kc, a 25W marker beacon in Ulysses, Kansas. Subsequent sessions have tuned in YMW 366kc in Maniwaki, Quebec, also YY 340kc in Mont Joli, Quebec, both at about 2500 miles and IY 417kc in Charles City, Iowa, a 25W marker beacon. Additionally, Radio Rossii, the LW BC station on 279kc, located on Sakhalin Island was received, along with PN, the NDB at Port Menier, Anticosti Island, Quebec. In the three week period of 1/21 to 2/11, I tuned in over 100 NDBs with the IP-501-A - seven were never-before-heard NDBs. Impressive performance from an 87 year old, three-tube regenerative receiver.
IP-501-A NDB Log - 2009
|AA - 365kc - Fargo, ND - 100W
AEC - 209kc - Base Camp, NV
AOP - 290kc - Rock Springs, WY
AP - 260kc - Denver, CO - 100W
AZC - 403kc - Colorado City, AZ
BKU - 344kc - Baker, MT - 80W
BO- 359kc - Bosie, ID - 400W
CII - 269kc - Choteau, MT - 50W
CNP - 383kc - Chappell, NE - 25W
CSB - 389kc - Cambridge, NE - 25W*
CVP - 335kc - St. Helena, MT - 150W
DC - 326kc - Princeton, BC, CAN
DDP - 391kc - San Juan, Puerto Rico - 2KW
DPG - 284kc - Dugway Proving Gnds, UT
DQ - 394kc - Dawson Creek, BC, CAN
EUR - 392kc - Eureka, MT - 100W
EX - 374kc - Kelowna, BC, CAN
FCH - 344kc - Fresno, CA - 400W
FN - 400kc - Ft. Collins, CO
FO - 250kc - Flin Flon, MB, CAN
GLS - 206kc - Galveston, TX - 2KW
GUY - 275kc - Guymon, OK - 25W
GW - 371kc - Kuujjuarapik, QC, CAN
HQG - 365kc - Hugoton, KS - 25W
IOM - 363kc - McCall, ID - 25W
ITU - 371kc - Great Falls, MT - 100W
IY - 417kc - Charles City, IA - 25W
JW - 388kc - Pigeon Lake, AB, CAN
LBH - 332kc - Portland, OR - 150W
LFA - 347kc - Klamath Falls, OR
LV - 374kc - Livermore, CA - 25W
LW - 257kc - Kelowna, BC, CAN
LYI - 414kc - Libby, MT - 25W
MA - 326kc - Midland, TX - 400W
MEF - 373kc - Medford, OR
MF - 373kc - Rogue Valley, OR
MKR - 339kc - Glascow, MT - 50W
MLK - 272kc - Malta, MT - 25W
|MO - 367kc - Modesto, CA - 25W
MOG - 404kc - Montegue, CA - 150W
MR - 385kc - Monterey, CA
NO - 351kc - Reno, NV - 25W
NY - 350kc - Enderby, BC, CAN
ON - 356kc - Okanagan, Penticton, BC, CAN*
OT - 378kc - Bend, OR
PBT - 338kc - Red Bluff, CA - 400W
PI - 383kc - Tyhee, ID
PN - 360kc - Port Menier, Anticosti Is., QC, CAN*
PTT - 356kc - Pratt, KS - 25W*
QD - 284kc - The Pas, MB, CAN
QQ - 400kc - Comox, BC, CAN
QT - 332kc - Thunder Bay, ON, CAN
RD - 411kc - Redmond, OR - 400W
RPB - 414kc - Belleville, KS
RPX - 362kc - Roundup, MT - 25W
RYN - 338kc - Tucson, AZ - 400W
SAA - 266kc - Saratoga, WY - 25W
SB - 397kc - San Bernardino, CA - 25W
SBX - 347kc - Shelby, MT - 25W
SIR - 368kc - Sinclair, WY
SX - 367kc - Cranbrook, BC, CAN
SYF - 386kc - St. Francis, KS - 25W
TAD - 329kc - Trinidad, CO
TV - 299kc - Turner Valley, AB, CAN
TVY - 371kc - Tooele, UT - 25W
ULS - 395kc - Ulysses, KS - 25W
VQ - 400kc - Alamosa, CO
VR - 266kc - Vancouver, BC, CAN
WG - 248kc - Winnepeg, MN, CAN
WL - 385kc - Williams Lake, BC, CAN
XD - 266kc - Edmonton, AB, CAN
XH - 332kc - Medicine Hat, AB, CAN
XS - 272kc - Prince George, BC, CAN
XX - 344kc - Abbotsford, BC, CAN
YAZ - 359kc - Tofino, Vancouver Is., BC, CAN
YBE - 379kc - Uranium City, SK, CAN
|YCD - 251kc - Nanaimo, BC, CAN
YHD - 413kc - Dryden, ON, CAN
YJQ - 325kc - Bella Bella, BC, CAN
YK - 269kc - Castlegar, BC, CAN
YKQ - 351kc - Waskaganish, QC, CAN*
YL - 395kc - Lynn Lake, MN, CAN
YLB - 272kc - Lac La Biche, AB, CAN
YLD - 335kc - Chapleau, ON, CAN
YLJ - 405kc - Meadow Lake, SK, CAN
YMW - 366kc - Maniwaki, QC, CAN*
YPH - 396kc - Inukjauk, QC, CAN
YPL - 382kc - Pickle Lake, ON, CAN
YPO - 401kc - Peawanuck, ON, CAN
YPW - 382kc - Powell River, BC, CAN
YQZ - 359kc - Quesnel, BC, CAN
YTL - 328kc - Big Trout Lake, ON, CAN
YWB - 389kc - West Bank, BC, CAN
YWP - 355kc - Webequie, ON, CAN
YY - 340kc - Mont Joli, QC, CAN
YYF - 290kc - Penticton, BC, CAN
YZH - 343kc - Slave Lake, AB, CAN
ZP - 368kc - Sandspit, QC IS., BC, CAN
ZSJ - 258kc - Sandy Lake, ON, CAN
ZSS - 397kc Yellowhead/Saskatoon, SK, CAN
ZU - 338kc - Whitecourt, BC, CAN
Z7 - 408kc - Claresholm, AB, CAN
3Z - 388kc - Taber, AB, CAN*
* = New NDB heard
IP-501 featured in "Robot Monster"
For those of us who are constantly watching in the background of old B&W movies to see if we can spot a recognizable vintage radio, the IP-501 family is probably the most elusive of radios to be spotted. There are only a few movies that used any of the IP-501 family as a prop. Fortunately for IP-501 fans, the receiver did make into what is probably one of the best known examples of "budget-challenged," movie-making disasters - "Robot Monster" - a 1953 sci-fi movie created by Phil Tucker. The movie was supposedly filmed in four days for a reported $16,000. Sometimes listed as the worst movie ever made (Guinness Book of World Records,) "Robot Monster" is actually entertainingly funny because it's so, so bad. Its incompetent production has earned it "Cult-Movie" status. The movie's infamous use of the IP-501 as a movie prop has the receiver as part of the "Automatic Billion Bubble Machine." The still photo from the movie (right) shows the Automatic Billion Bubble Machine next to the movie's rotund space alien-villain Ro-Man XJ2 (in the gorilla suit with diving helmet.) The equipment blows a copious amount of bubbles while in operation and allowed Ro-Man to communicate with his unreasonable leader, "The Great Guidance," located somewhere in space (conflicting advertising stated the Moon, then Mars - the movie is vague but shows a lot of craters whenever "The Great Guidance" is contacted.) "The Great Guidance" (who looks just like Ro-Man but without the telephone microphone glued to the window of his helmet) has a affinity for Jacob's Ladders and has several in operation during his communications with Ro-Man. The credit for the Automatic Billion Bubble Machine was listed as a company called "N. A. Fischer Chemical Products" but this was probably for the bubble solution rather than for the radio props. Besides the IP-501, there is a Hallicrafters S-20R, Hallicrafters HT-18 (upside down on the IP-501,) a Hallicrafters panadaptor and a set of low-budget TV rabbit ears. Though other villainous space aliens would probably have had a nice console to house their sophisticated communications gear, Ro-Man had to settle for a cheap wooden table outside his cave hideout on Earth. Even his view-screen, which looks a lot like a roll-down window shade, is located on the other side of the cave. Fortunately for radio spotters, the IP-501 and the rest of the radio gear is featured in many close-ups several times throughout the movie. It seems Ro-Man needs constant reminding of his mission objective from "The Great One" - as Ro-Man sometimes addresses "The Great Guidance" - so he uses the Automatic Billion Bubble Machine a lot in the movie. There is a plethora of information on "Robot Monster" on the web, or if you appreciate inept movie-making, the DVD is available almost anywhere. It was reported in the Guinness Book of World Records that Phil Tucker attempted suicide due to unanimous panning by the critics of "Robot Monster." All of the negativity didn't stop Phil Tucker as he later returned with another masterpiece - "Cape Canaveral Monsters."
1. Hazeltine, the Professor - by Harold A. Wheeler, SE-1420 origins and history - published in Radio Age, April 1978
2. Radio Manufacturers of the 1920s, Vol 3 - RCA and Wireless Specialty Apparatus history - by Alan Douglas 1991
3. RCA, Westinghouse Type RB, photo of Type RB - by Alan Douglas - published in Radio Age, November 1982
4. Tropical Radio and Telegraph Co., United Fruit Co., NESCO, ISC, International Radio Telegraph Co. - Geo. C. Clark "Radioana," Wikipedia and various other online sources
5. "Keeping the Stars and Strips in the Ether" - RCA-Navy relationship - from Radio Broadcast - June,1922
6. IP-501-A manual - RMCA - available online
7. The Radio Manual - Descriptions and Operating Instructions for SE-1420 and IP-501 - by George Sterling 1928
8. Robot Monster - www.badmovies.org - general information and pix (and actually watching the film)
|NAVY-RADIO.COM - For the most detailed information Pre-WWII, including many photos of SE-1420 installations and other early Navy gear and on all types and all vintages of Navy radio equipment, radio stations, vintage photographs - go to www.navy-radio.com Nick England's incredible Navy-Radio website has the most information available.|
|Henry Rogers © Jan 2009 More info added Feb.2009, Apr. 2009, Corrections to RMCA information Dec 2015, more RMCA corrections and minor edits about LW stations June 2018,|
Return to Home Index
Donations to Radio Boulevard - Western Historic Radio Museum's Website
If you enjoy using Radio Boulevard - Western Historic Radio Museum's website as an information resource and have found our photos, our hard to find information or our restoration articles helpful, then please consider a donation to the WHRM website. A small donation will help with the expenses of website operation, which includes website hosting fees, data transfer fees, research, photographing and composition. WHRM was a real museum that was "Open-to-the-Public" from 1994 to 2012 - eighteen years of operation. WHRM will continue to provide its on-line information source with this website, which has been in operation since 1997.
Please use PayPal for sending a donation by clicking on the "Donate" Button below
Western Historic Radio Museum
Vintage Radio Communication Equipment Rebuilding & Restoration Articles,
Vintage Radio History and WHRM Radio Photo Galleries
1909 - 1969
- 60 years of Radio Technology -
This website created and maintained by: Henry Rogers - Radio Boulevard, Western Historic Radio Museum © 1997/2020
